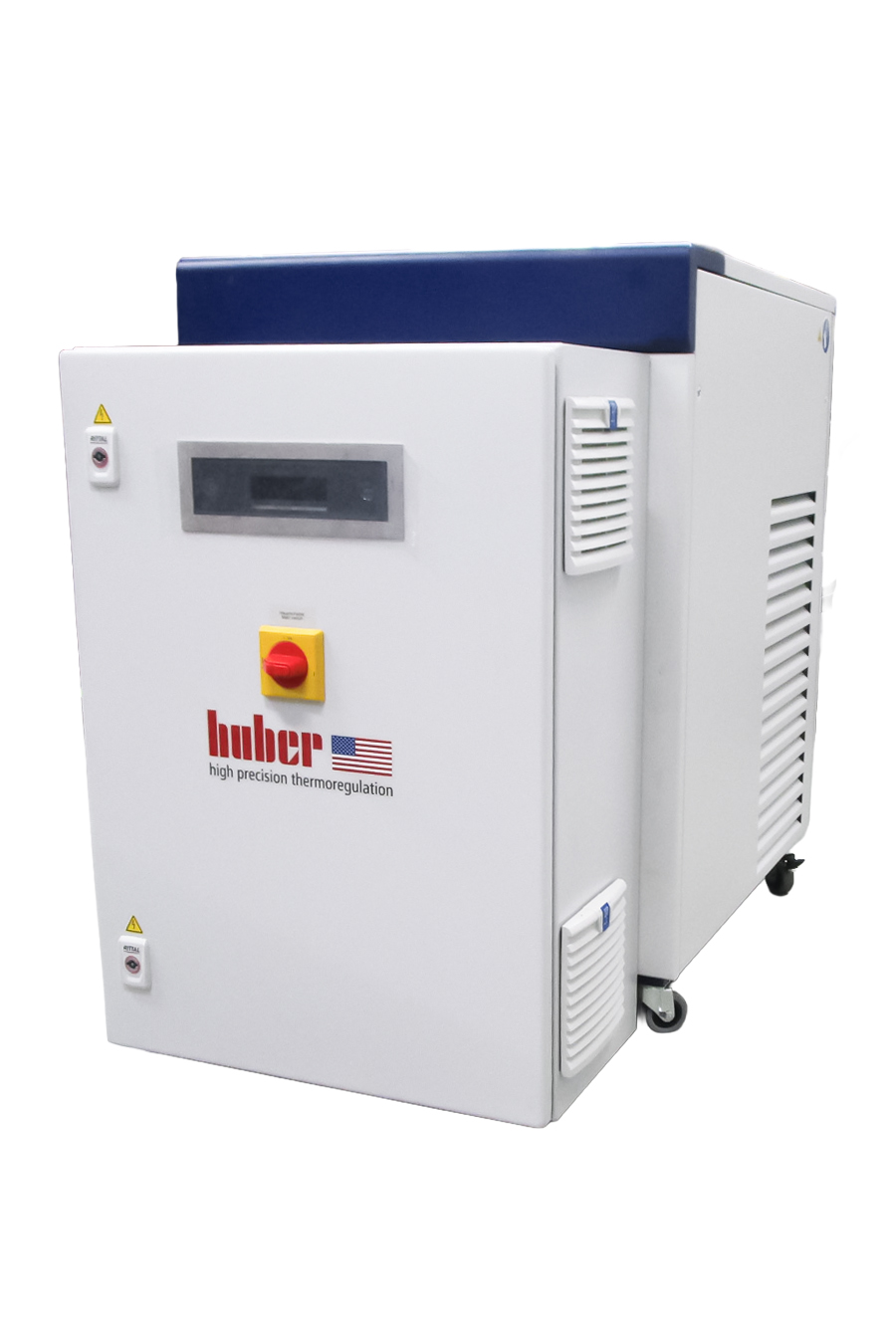

Huber HS 120

Instant water heater

Model: Huber HS 120 Group: 25 Order No.: VDH33100025

Functions Technical data Downloads Warranty extension

Performance Characteristics

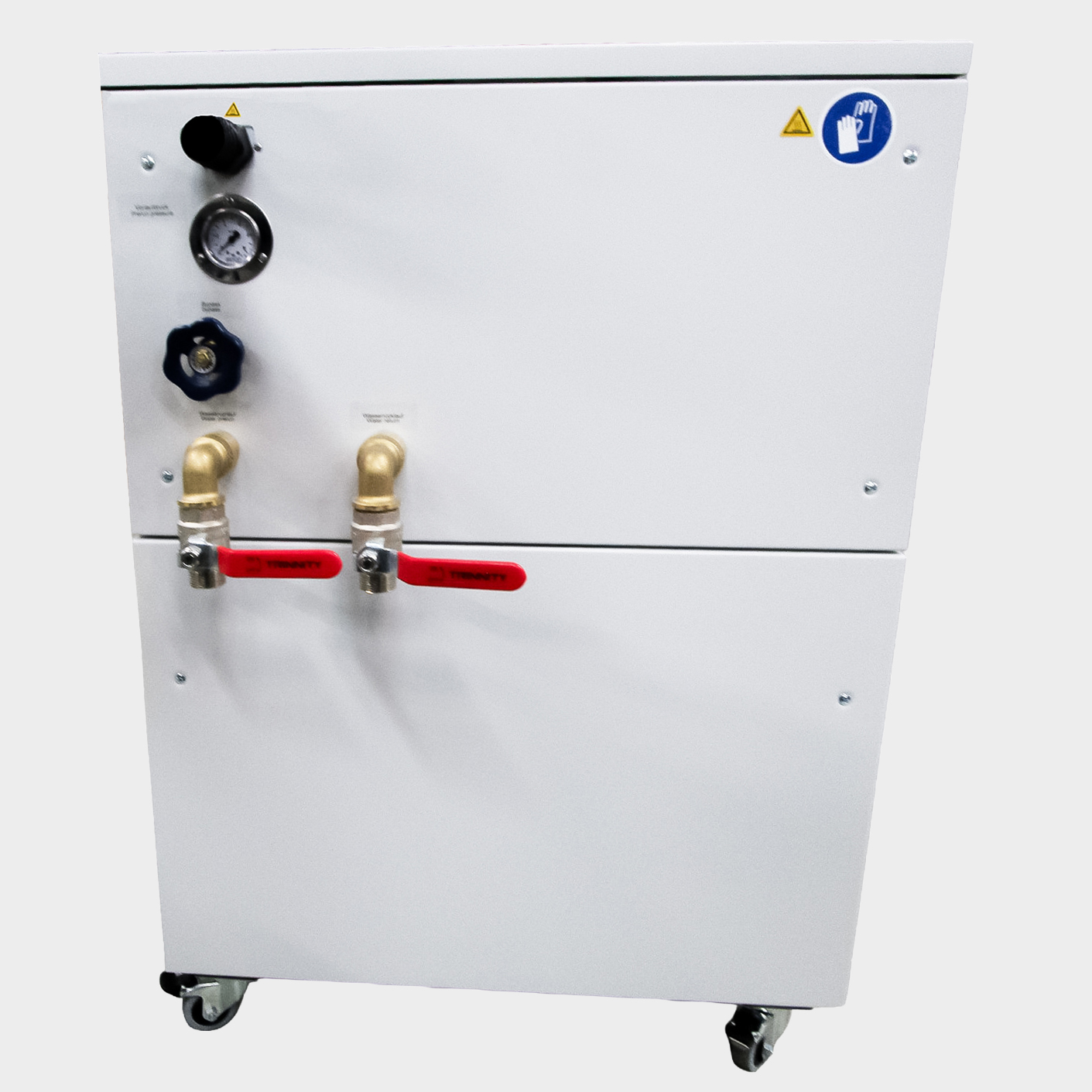

Instant water heater with housing, atmospheric open tank and heating module made of stainless steel. With digital level indicator. Powerful feed pump with integrated overtemperature protection. Optional the flow rate could be adjusted via the manual bypass valve on the backside of the heater.

Performance features Huber HS 120 Instant water heater

Functions overview

High efficiency

Precise temperature control

Low operating costs

Powerful recirculation pump

Extremely quiet and simple operation

Low-noise construction

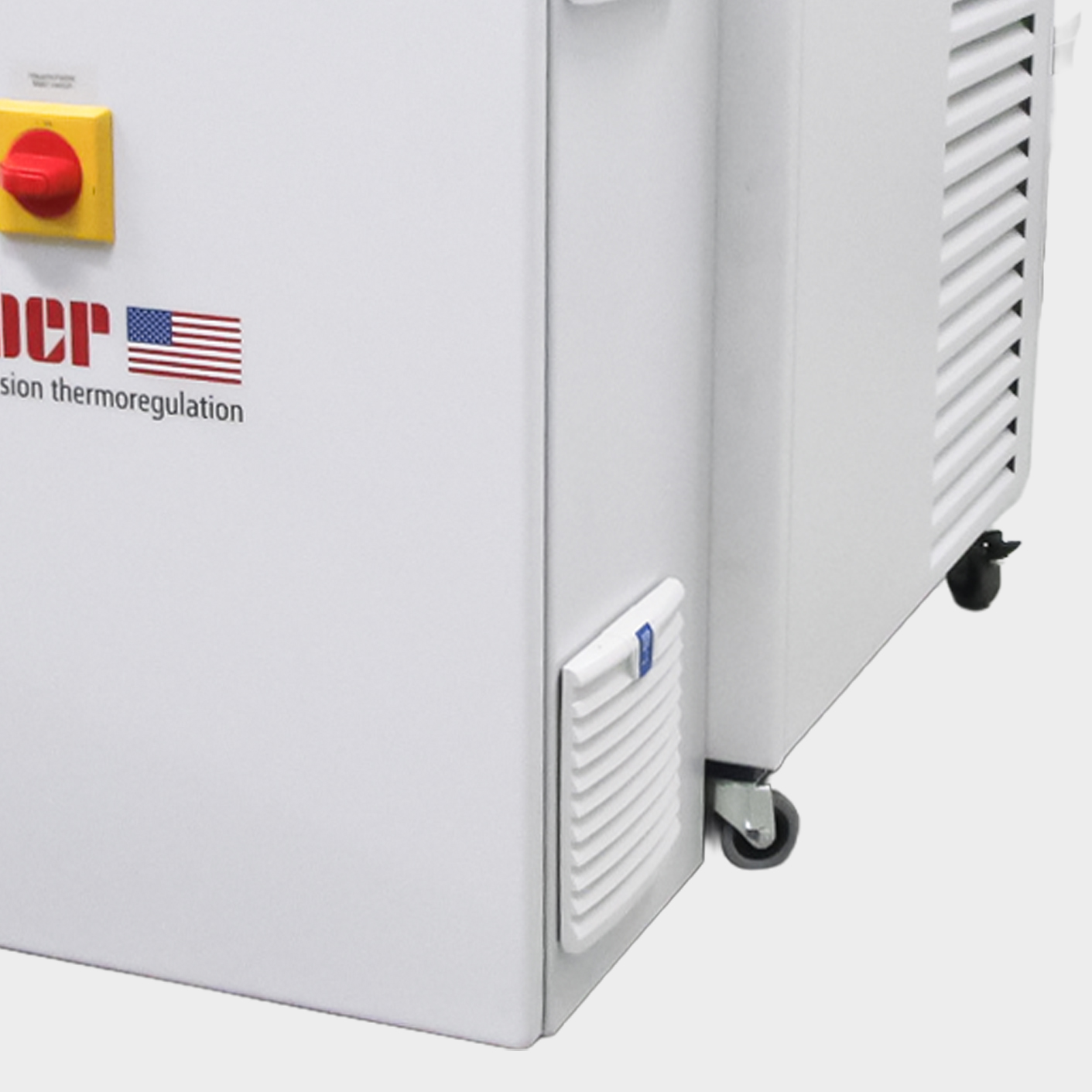

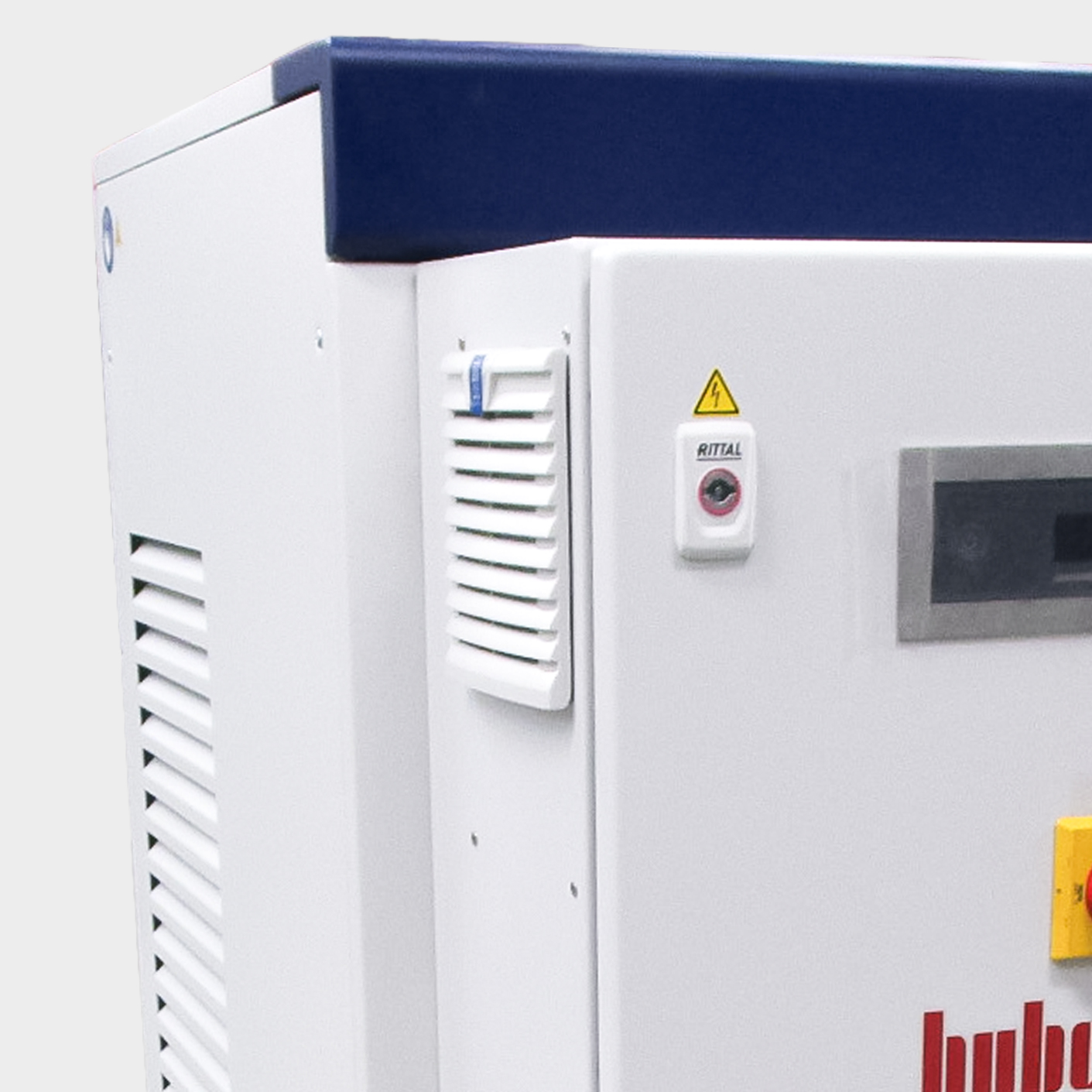

Product impressions

Controller

The controller is particularly convincing with its simple operating unit and its multilingual menu navigation. The menu shows understandable text descriptions of warnings or fault conditions. In addition, the controller offers capacitive touch technique with acoustic confirmation. It has a bright O-LED display and an easy care and hygienic operating area.

Conroller Huber HS 120 Instant water heater

Temperature range	35...85 °C
Safety class	I / NFL
Protection class	IP20
Dimensions (W x D x H)	580 x 900 x 830 mm
Weight, net	130 kg

Heating capacity

12 kW

Delivery capacity pressure pump max.	87 l/min; 3,7 bar
Pump connection	G3/4 AG male

Filling volume min.	24 l
Power supply	460V 3~ 60Hz
Current consumption max.	20 A
Fuse	3x25A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
