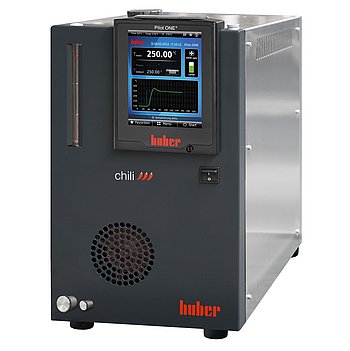

Chili is the latest heating circulator for closed systems in the Unistat product family. The compact heating thermostat is equipped with the E-grade Professional as standard and convinces with excellent thermodynamic properties and a range of functions for the highest demands. Chili guarantees highly accurate, reproducible temperature control results with short heat-up times and wide temperature ranges without changing fluids. Like all Unistats, the Chili is equipped with the innovative Pilot ONE controller with 5.7" touch screen and convenient menu navigation.
The economically Unistat technology provides minimized operating costs and efficient energy management. A further advantage is the extended life-time of the thermofluid. The hydraulically sealed systems prevent the formation of oil vapours and oxidation. Chili is the smallest heating thermostat in the Huber product range that is approved for use with Marlotherm as a thermofluid. For controlled cooling, an external cooling coil (unregulated) is available as an optional accessory. Due to ist technical properties and low purchase price, Chili is ideally suited for distillation tasks in botanical extraction, for example.
- Precise and reproducible temperature control results
- Wide temperature ranges with no fluid change
- Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
- Adaptive temperature control, self-optimising
- 2 x USB (Host and Device), Ethernet and RS232 interfaces
- Efficient operation saves working time and operating costs
- Proven functionality for the process industry
- E-grade "Professional" included
- For use with Marlotherm as thermofluid (closed systems)
The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.Read more
|2,7 - 3 kW
|Delivery capacity pressure pump max.
|45 l/min; 0,9 bar
|M24x1,5 AG male
|Max. permissible viscosity
|Pump speed adjustable
|Pressure pump, variable speed
|External sensor connection
|Ethernet, USB (Host u. Device), RS232
|Permissible ambient temperature
|Filling volume min.
|200-240V 1~/2~ 50/60Hz
|Current consumption max.
Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.
Please observe the notes on installation and/or the space requirements of our products.
The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%
Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.
We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
